Twin, TwinXL, Full and Queen Foundation Setup Instructions

Quick Start & Setup Guide To Help You Start Sleeping On Your Aviya!


Foundation Assembly Instructions

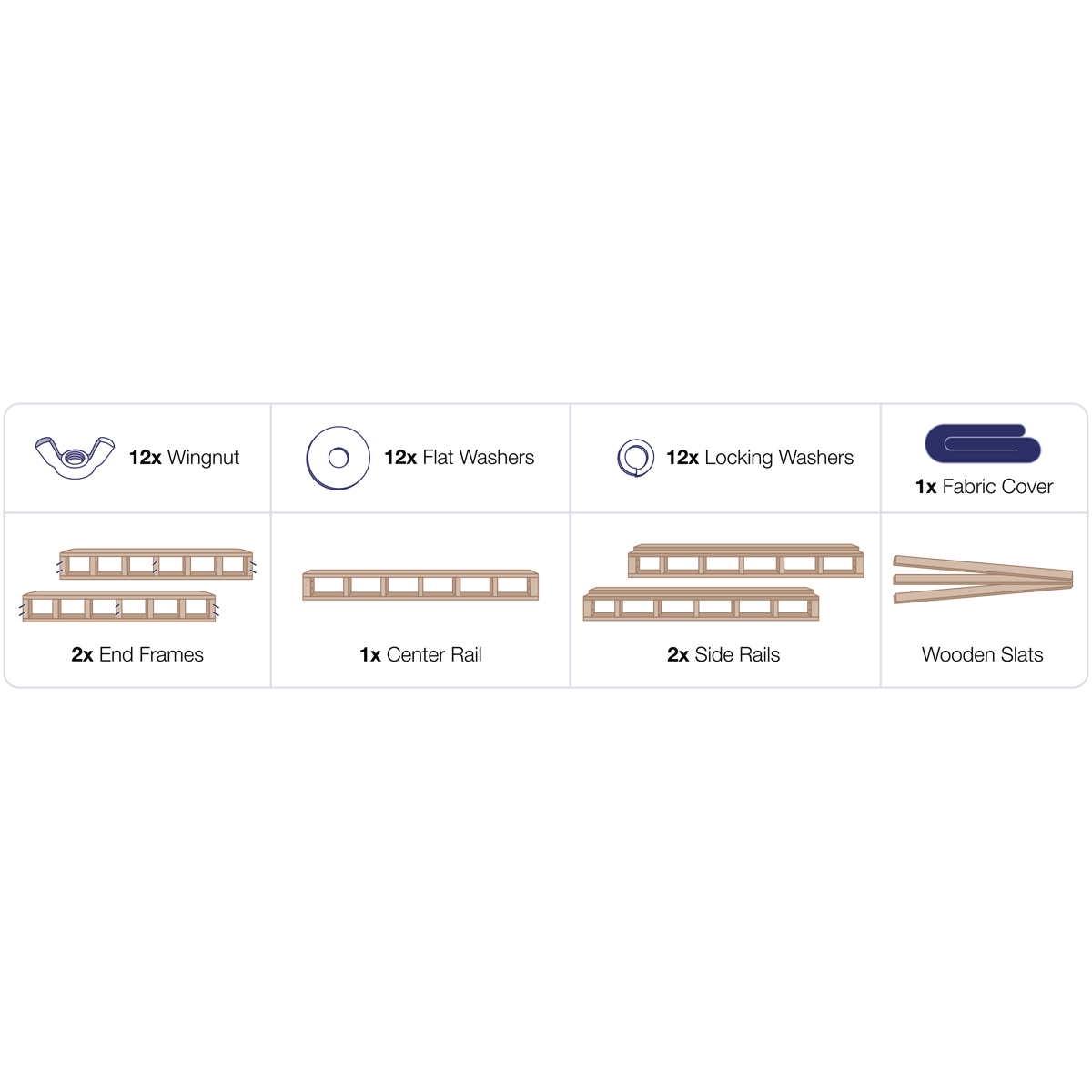

Queen, Full/Double, Twin XL & Twin Parts Checklist

Quick Setup Guide

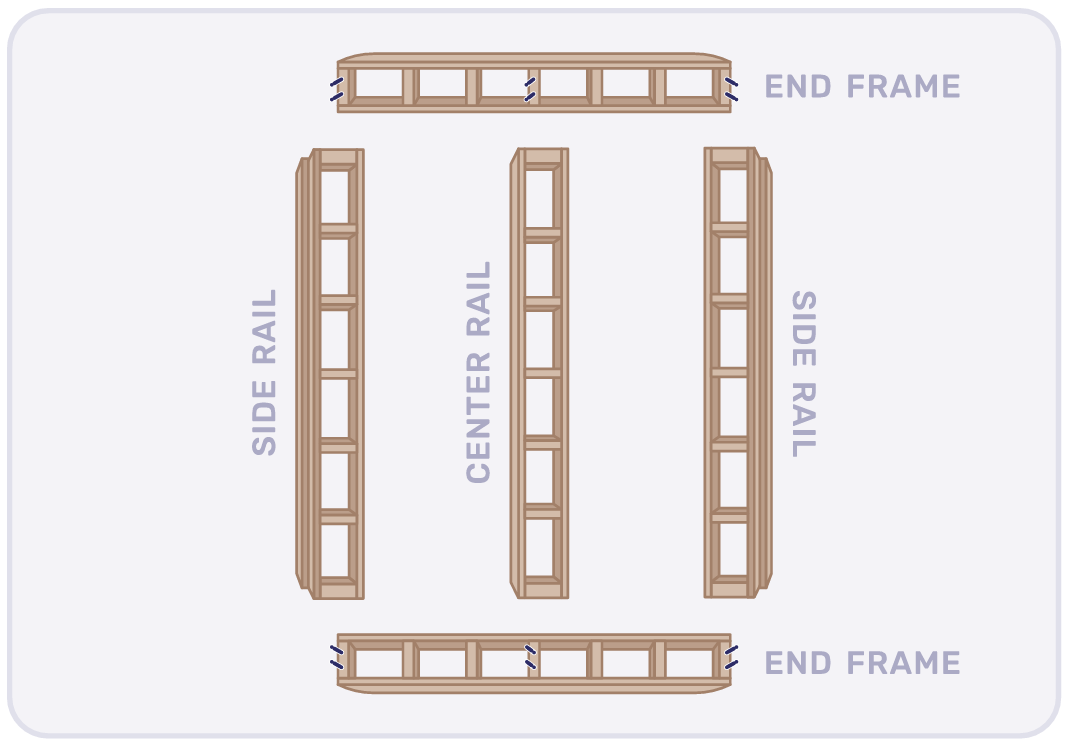

Step 1

Lay out the five wooden pieces of the foundation frame. Be sure that each End Frame and Side Frame has the recessed side facing up and towards the center. This recess will hold the slats later in the assembly. Look for the "UP" indicator on each of the four pieces as a guide.

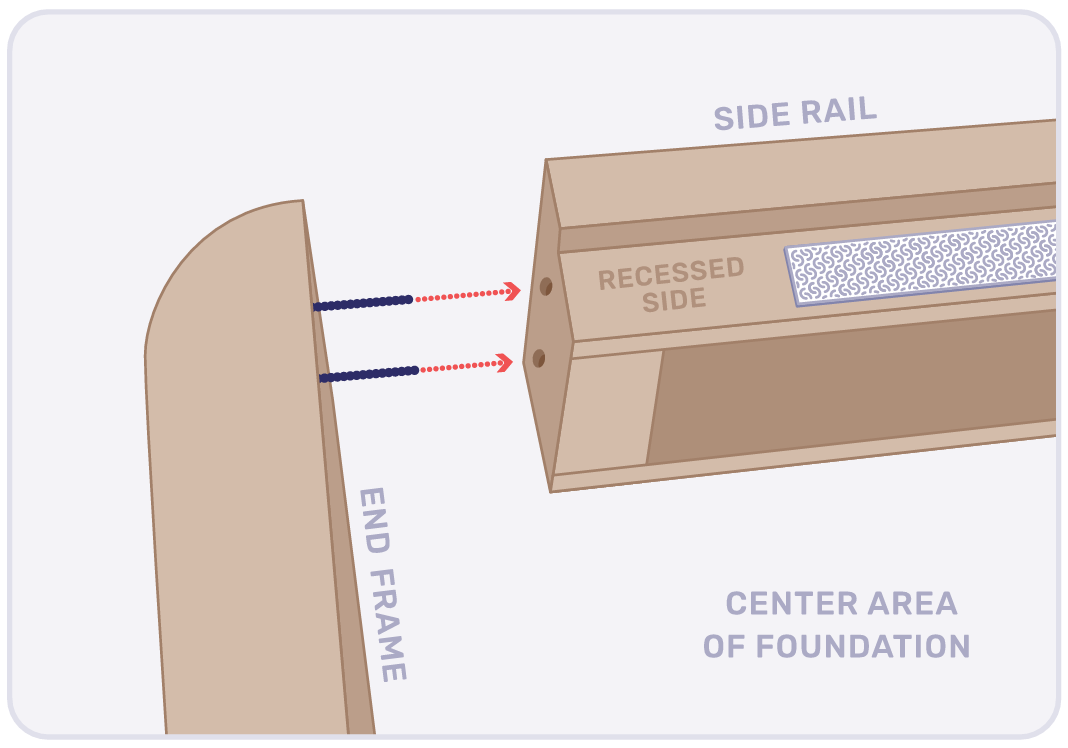

Step 2

Start at one end of the foundation. Insert the bolts found in the End Frame through the holes in the Side Rail. Be sure that the Velcro & recessed top faces up.

Step 3

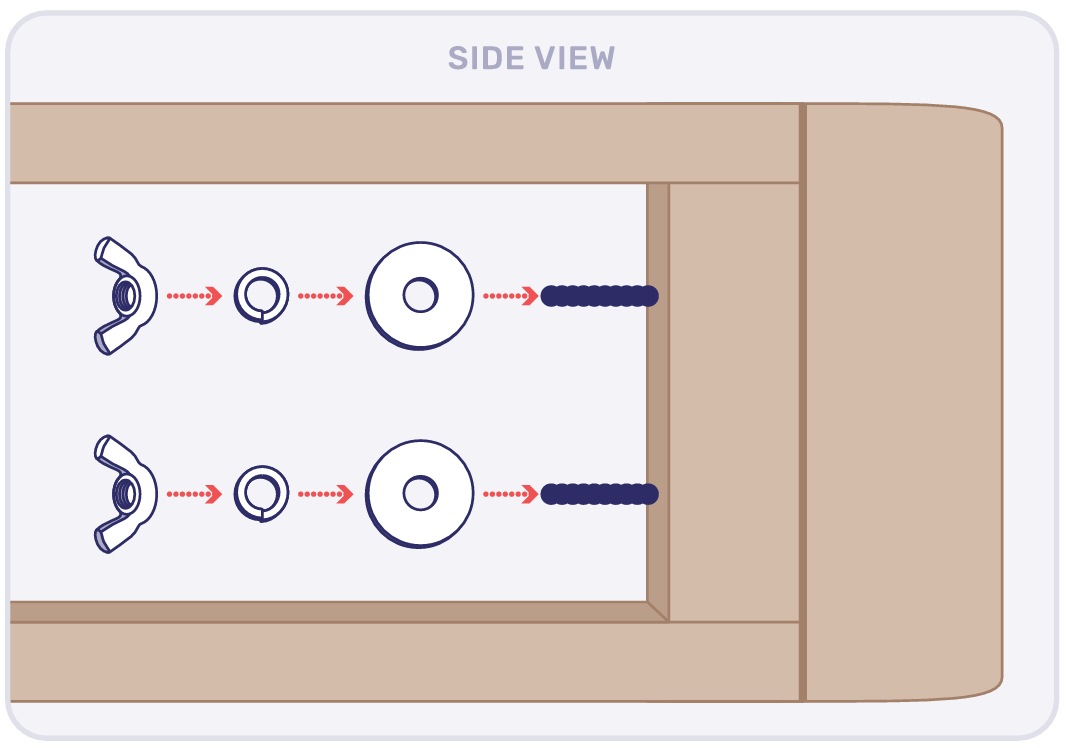

Secure the End Frame to the Side Frame using enclosed hardware as shown. First, position the flat washer, then the locking washer, and end with the wingnut. Secure the other end of the Side Frame to the remaining End Frame. You should now have one Side Frame attached one End Frame.

Step 4

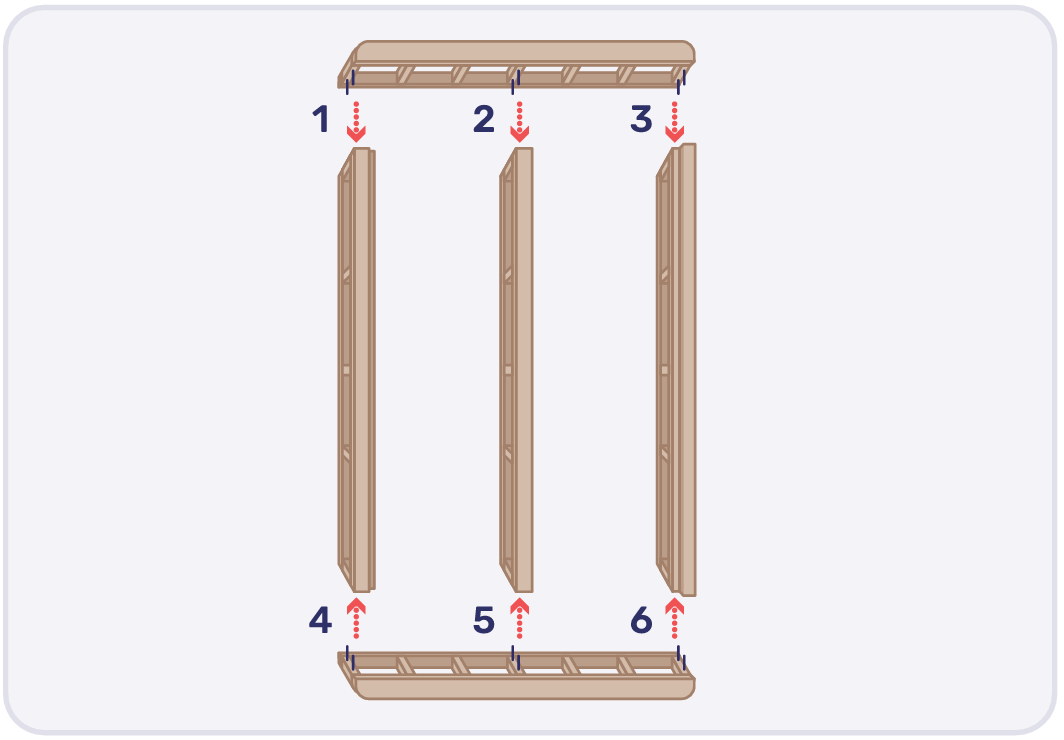

Repeat Steps 2 & 3 for the Center Rail and remaining Side Rail. Attach all of the Center and Side Rails to one End Frame first. Follow the number order as shown on the left. Ensure all hardware is securely fastened. Remember to have the recessed part of the Side Frames Facing up and towards the center. If correct, the Velcro will also be facing up.

Step 5

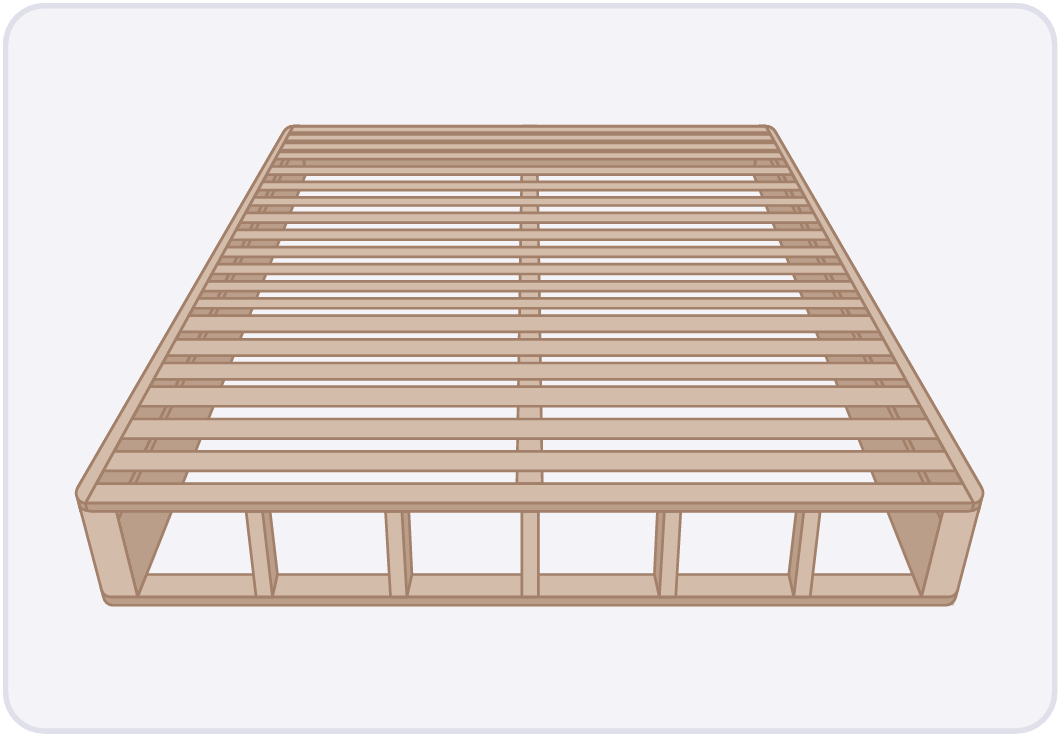

Starting at one end of the foundation, carefully lay the slats inside the foundation frame, Velcro side down. Stretch the slats to ensure a snug fit. Use the Velcro to secure the slats in place.

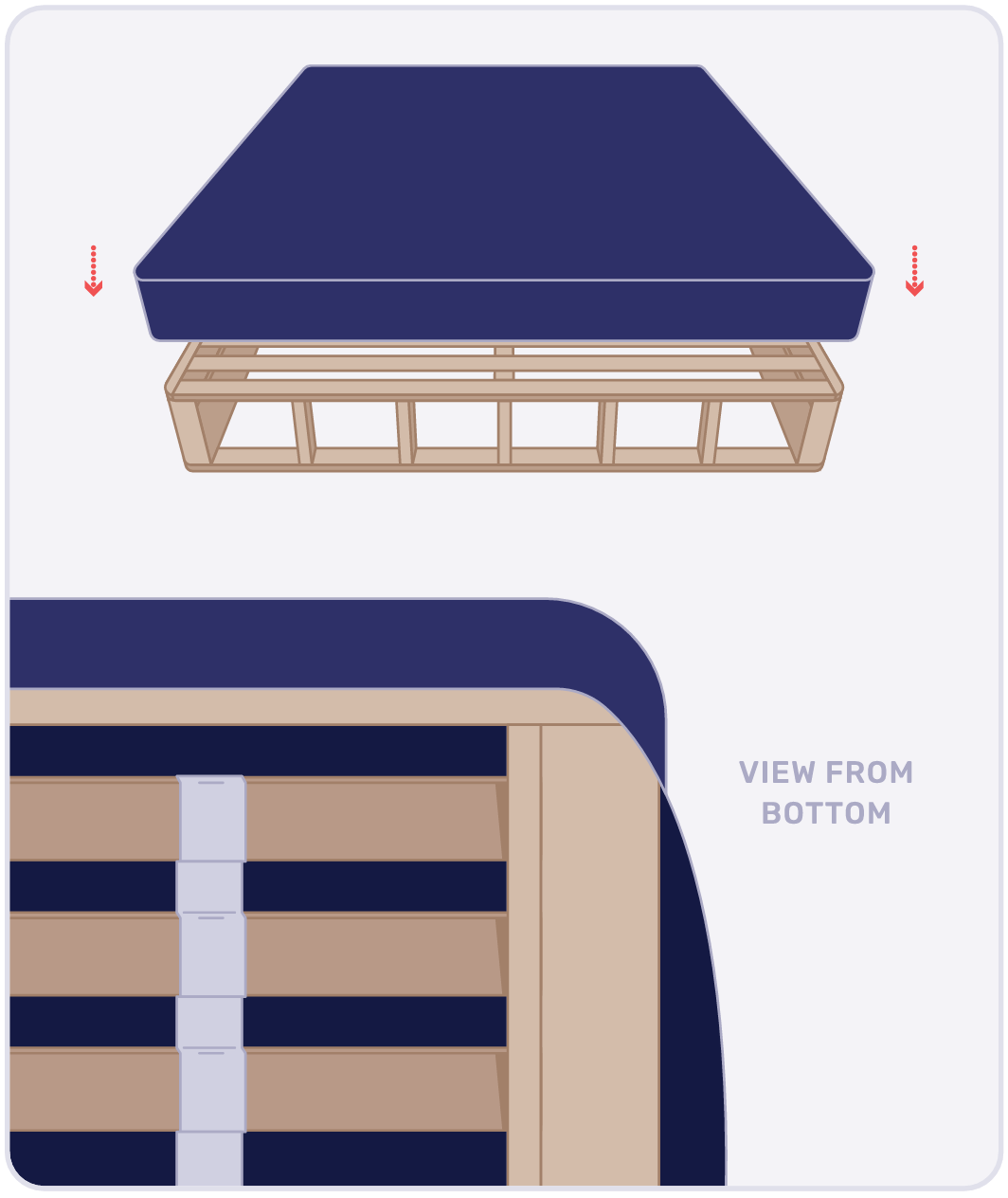

Step 6

Lay the cover over the completed foundation structure. Starting with one corner, stretch the cover over the foundation. You may find it helpful to stand the foundation on its side to fully stretch the cover tightly around the frame. Continue to stretch and align the cover over each corner – there is a bit of trial and error here to get it just right! When complete, all seams and corners should be neat and aligned.

Please note: Cover is not machine washable. Spot clean only.

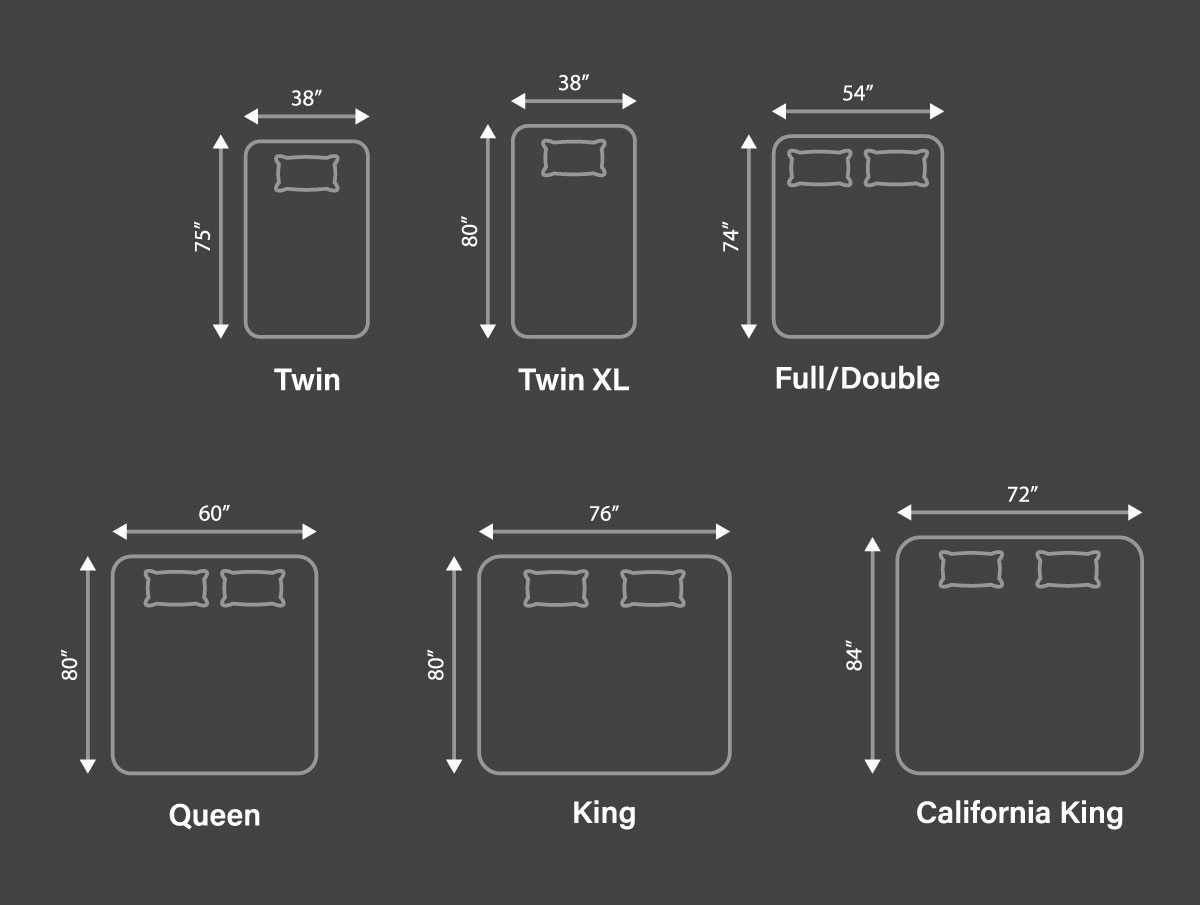

Section Image
Seeing Different Parts Than Whats In Your Box?

Did you Purchase a King or California King Size Foundation?

Don't worry, you might have just landed on the wrong page. Aviya has two different foundation setup guides - One for the Queen, Full/Double, Twin XL or Twin Foundation AND a different guide for the King or California King Foundation. Click here to find the King & California King Quick Setup and Instruction Guide:

Aviya Mattress Tips & Tricks

A few other tips and tricks from our mattress experts:

  • Carry your mattress flat on its side — it's easier to handle and less likely to cause damage.

  • Cover your mattress with a quality protector to keep your mattress clean and fresh. It’s the best way to keep your mattress in good shape and ensure the warranty stays active! It’s a big help in protecting your mattress from stains, spills, and more.

  • Replace the box spring when purchasing a new mattress because old box springs lose strength and support. What appears to be a sag in your new mattress may result from a faulty or weakened box spring. A box spring that does not correctly support your new mattress may invalidate your mattress warranty.

  • Use a metal bed frame. For queen and king-sized bedding, a rigid center support is required.

Frequently Asked Questions

Got questions? We’ve got answers!

How long should I wait to use my mattress after unboxing?

While the mattress will raise to full size quickly, wait 30 minutes before you lay on it. Within a few hours, your mattress will be fully expanded.

What can I put my Aviya Mattress on?

We recommend you place your mattress on the Aviya Foundation. If you have not purchased the foundation, it will fit on almost any bed frame, foundation or box spring. Please make sure it will properly support the weight of the mattress, foundation and sleeper(s) on top. Make sure your bed is built to support at least 1,310 lbs. (the weight of an Aviya Sleep System + 2 sleepers weighing a total of 1,100 lbs.). If you have any questions about your current bed frame, foundation or box spring, get in touch with us.

Will it take time to adjust to my new mattress?

In short, yes. The support provided in the Aviya Mattress is unseen in other mattresses. If you have previously been sleeping in an older, sagging, or soft mattress, your body will need time to adjust to a different level of support. We offer a 100 night sleep trial. We do ask that you sleep on the mattress for at least 2 weeks before making a decision.

Do I need to rotate it?

The resilient materials used in your mattress are designed to conform to your body’s individual contours. This is not a manufacturing defect. Turning your mattress will help equalize these impressions which form naturally on the mattress surface over time.

How do I clean the mattress?

To prevent damage, using an appropriate mattress protector is your best approach to keeping your mattress clean and stain free. If an area on the surface needs cleaned, use a spray upholstery cleaner and soft cloth to spot clean. First, test any cleaner in an inconspicuous place, in case it stains the fabric. You can also vacuum your mattress surface with a soft brush or plastic attachment. Do not soak the Aviya Mattress in water.
